Value Gable Shed


Dimensions & Specifications
Overall Width: 96"
Overall Length: 96", 120", 144", 168", 192"
Sidewall Height: 75"
Interior Peak: 92 1/2"
Exterior Peak: 96 1/2"
Door Opening: 48" x 72"
10' Dimensions:
Overall Width: 120"
Overall Length: 120", 144", 168", 192", 216", 240"
Sidewall Height: 75"
Interior Peak: 97 1/2"
Exterior Peak: 101 1/2"
Door Opening: 60" x 72"
12' Dimensions:
Overall Width: 144"
Overall Length: 144", 168", 192", 216", 240", 288"
Sidewall Height: 75"
Interior Peak: 102 1/2"
Exterior Peak: 106 1/2"
Door Opening: 60" x 72"
Value Wood Gable Shed includes:
Roof Pitch: 5:12
Wind Speed Rating: 109
SmartSide Siding (50 yr. Limited warranty)
4' Double Door (5'x6'opening)- 8' Wide Models
5' Double Door (5'x6'opening)- 10'or 12' Wide Models
2x4 for wall framing 24" on center OC
2x4 for trusses 24" on center (OC)
Straight trim (high quality composite material)
Swivel door latch
Rust-resistant aluminum corner trim
Trim and siding is 98% pre-primed
Fasteners included
Everything is precut and ready to assemble
Standard Feature:
Precut DIY Kit with Optional Floor Kit
Additional Options:
Size
Optional Floor Kit
5/8” OSB Flooring Material
2X4 Treated Sub-Floor Framing (16” on center)
Customer Provides:
Shingles
Drip Edge
Paint
Above items can easily be purchased at your local hardware store!
Shipping:
Larger units may ship on two pallets
Ships via freight carrier and may require an appointment for delivery
Liftgate delivery with a patent-pending delivery method for improved convenience.
Delivery Cost & Lead Time
Additional Information
Choosing Dining Chairs
Keep in mind that your table type will affect how your dining chairs will fit. Pedestal tables and trestle tables will allow more room than leg tables since chairs have to fit between the table legs.
- The average dining chair is 16”- 20” wide. Measure dining chairs at their widest point, and add 6” to ensure there is enough room between chairs for people to move comfortably. Depending on the style of the chair, the widest point may be on the seat or chair back.
- Try to allow for 12 inches between the chair seat height and the table top, no matter the table height, to ensure everyone has enough room to sit comfortably.
- Leave seven inches between the chair arm height and the table apron (bottom edge of the table).
Chair Heights
Chairs can be built in three heights: Standard, counter, and bar or gathering height.
- Standard height chairs are 18”- 23” tall and are available in a wide variety of designs.
- Less formal than standard chairs, counter height chairs are 24” – 26” tall. Their added height creates the illusion of taking up less space.
The Livingston Contemporary Bar Stool is available in counter or bar height.
- Bar/gathering height chairs are 28”- 30” tall. They are ultra-cool and casual and fit well in smaller spaces.
The Amish Harris Bar Stool can be built in counter or bar height.
Side and Arm Chairs
Arms add about 6” to the overall width of a dining chair. If space is limited, consider using armless dining chairs, or only use arm chairs at the head and foot of the table.
- Side chairs take up less space visually and physically.
- Arm chairs are often used at the head and foot of the table. They offer added comfort with a place to rest the arms.
With the help our sizing guide, find the right solid wood dining set that will be the perfect fit for dinner and special occasions.
Buy as Shown
Overview

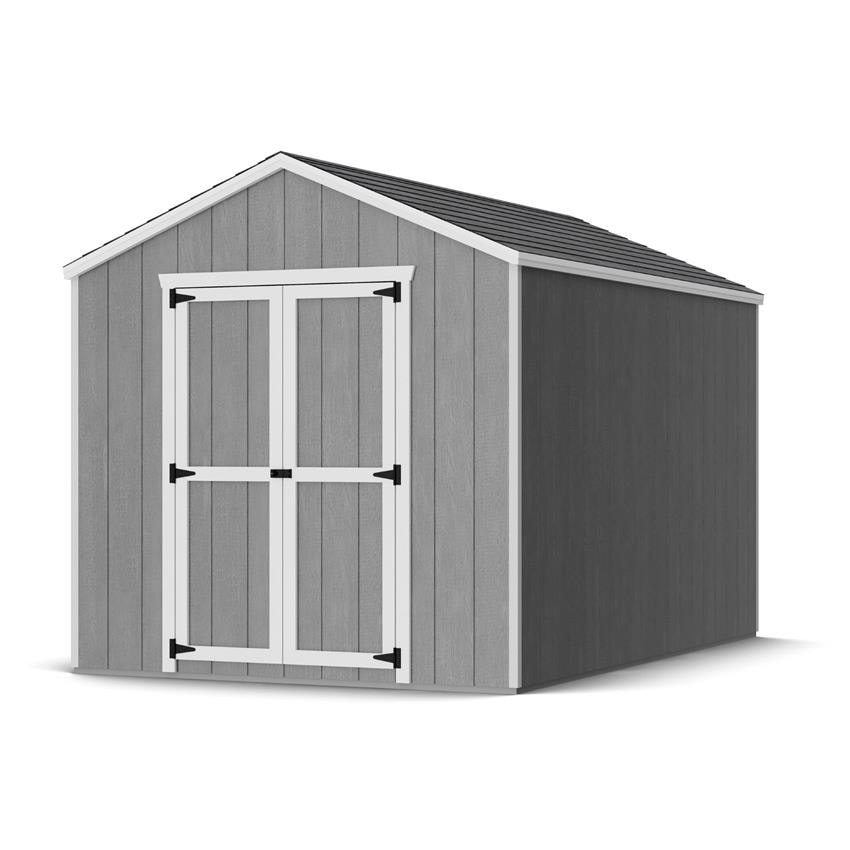

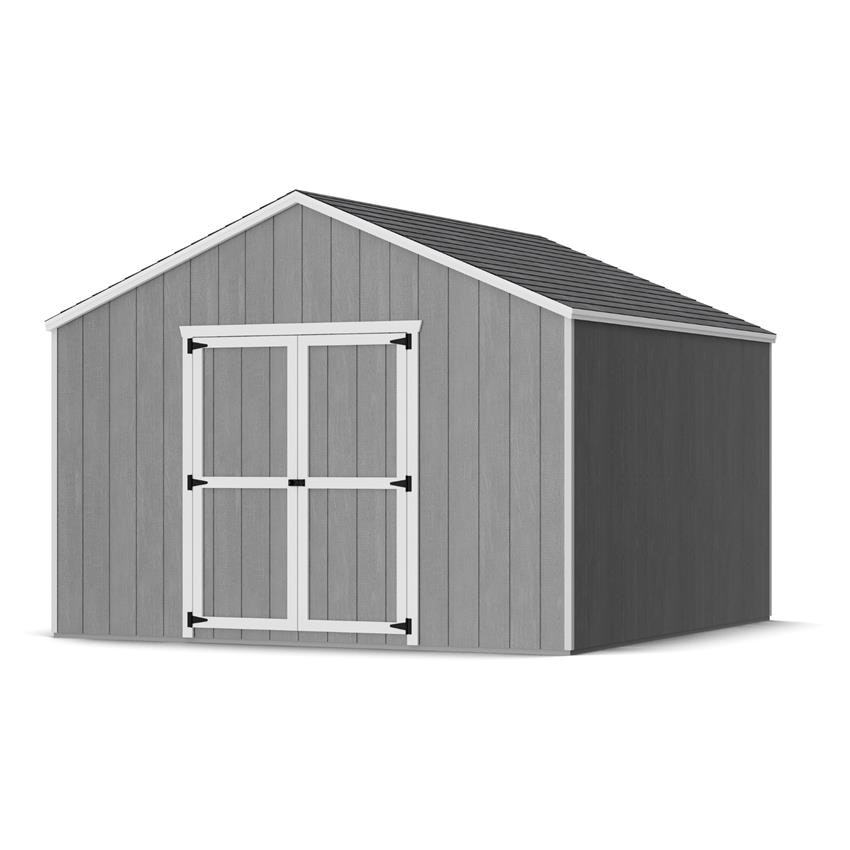

Our Value Wood Gable DIY Shed Kit is premium built from industry standard Smartside siding. Smartside siding is the engineered wood that is often used for building home and is backed by a 50 year limited warranty.
These DIY shed kits come unfinished. Paint, drip edges, and shingles can all be bought at your local store. We have a variety of size options so you can get the shed size you need.
Please give us a call or shoot us an email if you have any questions.
