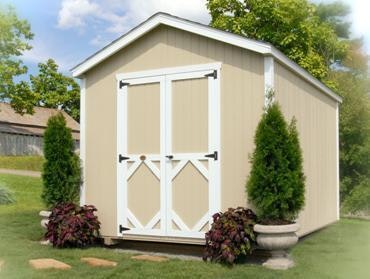

Amish Wood Classic Gable Shed Kit



Dimensions & Specifications
2x4 wood wall framing 16'' on center (OC)
2x4 trusses 24'' OC
6' high front and back walls
High quality siding and trim pre-fastened onto wall panels (insures panels are square)
Straight trim pre-fastened to panels (high quality composite material)
All other parts are precut and ready to assemble
4' Double door on 8' wide buildings truss width (4x6 opening)
5' Double door on 10' and 12' wide buildings truss width (5x6 opening)
locking door handle latch
High quality composite material corner trim
Everything is precut and ready to assemble
Standard Feature:
Precut DIY Kit with Optional Floor Kit
Additional Options:
Size
Floor Kit
Window 18" x 22" (installed by customer)
Shutters (plastic)
Flower Box (wood)
Optional Floor Kit
5/8” Plywood Flooring
2x4 Floor Joists
4x4 Treated Runners
Customer Provides:
Shingles
Drip Edge
Paint
Above items can easily be purchased at your local hardware store!
Shipping:
Larger units may ship on two pallets
Ships via freight carrier and may require an appointment for delivery
Liftgate delivery with a patent-pending delivery method for improved convenience.
Delivery Cost & Lead Time
Additional Information
All preparatory work of the site is the responsibility of the property owner. Whatever surface you choose to place your structure on, that surface should extend out approximately 1’ wider on all sides of your structure. Most importantly, be sure you have a level surface for your building.
Again, the most important thing is that the site is level. We recommend a crushed stone, patio block, or concrete pad to form a base, however the base of our cottage kits are constructed of treated lumber and may be placed directly on the ground. When preparing a base you should make the base at least 1' wider on all sides of the playhouse.
There are several ways to prepare your site including the following:
Crushed Stone - We recommend using crushed stone (3/4" clean) approximately 4-5" deep. We also advise that you have 12" of stone around the perimeter of the outbuilding to control weeds and keep moisture away from the building. Before installing the stone, you can either dig out 4" of soil and simply make the stone ground level, or you can make a frame with 4"x4"s or landscape timbers and then fill flush to the top with stone.
Concrete Pad - Another option would be to have a concrete pad installed. If you are going to have a concrete pad installed, remember to keep your pad as close to ground level as possible. We recommend that you make the pad 12’’ wider on each side of the building.
Using crushed stone or a concrete pad will increase the longevity of your building/ playhouse. Having the proper site allows needed air flow, which will keep your building/playhouse looking great for years to come!
Permits: If it is necessary to obtain a building permit or cross a neighboring property, it is the buyer’s responsibility to obtain a neighbor’s permission of the necessary permit prior to delivery.
Customer is responsible for all site prep and permits.
