Amish Made Riverside Shed Kit

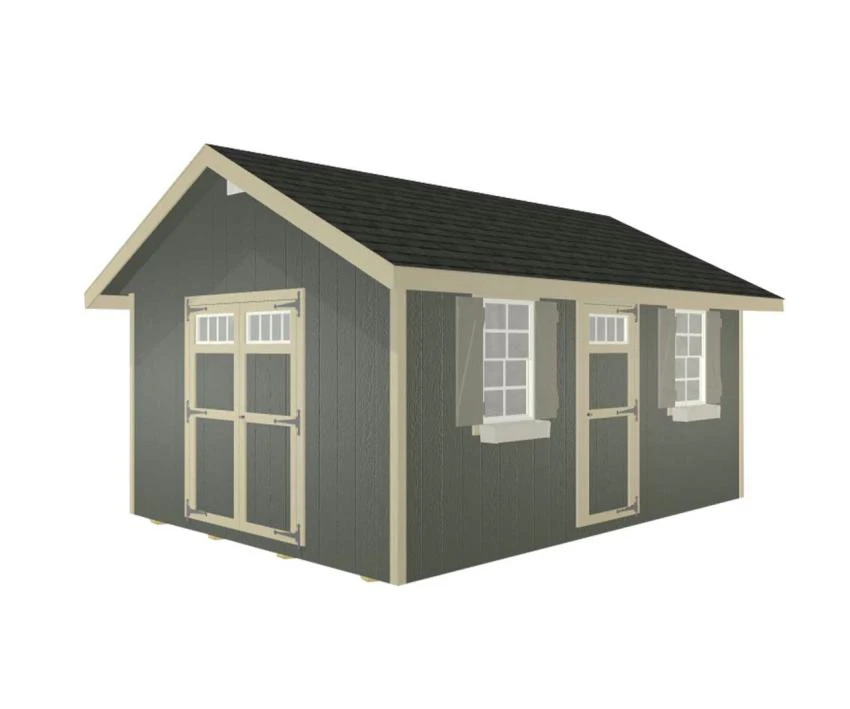

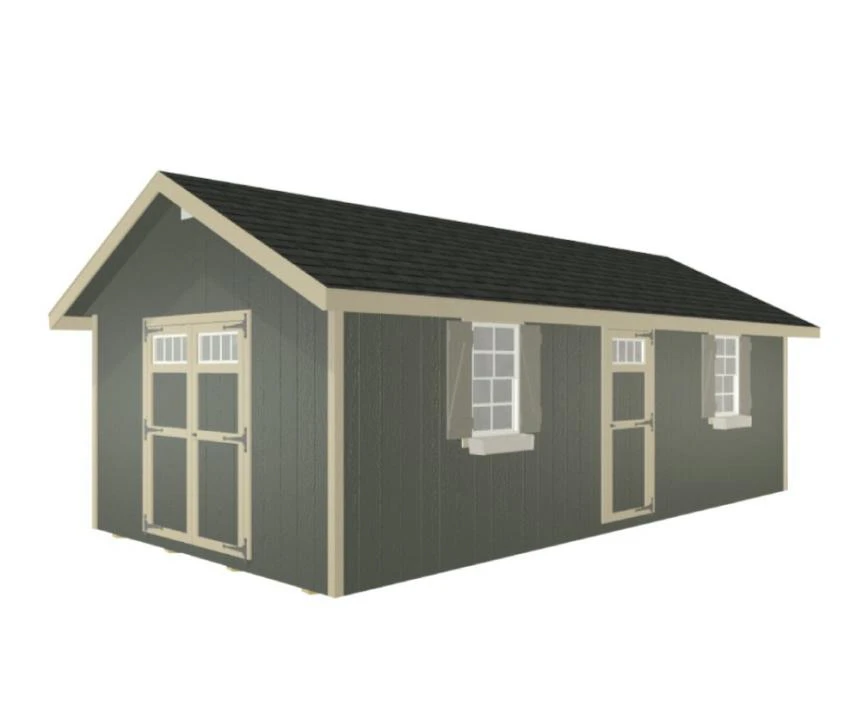

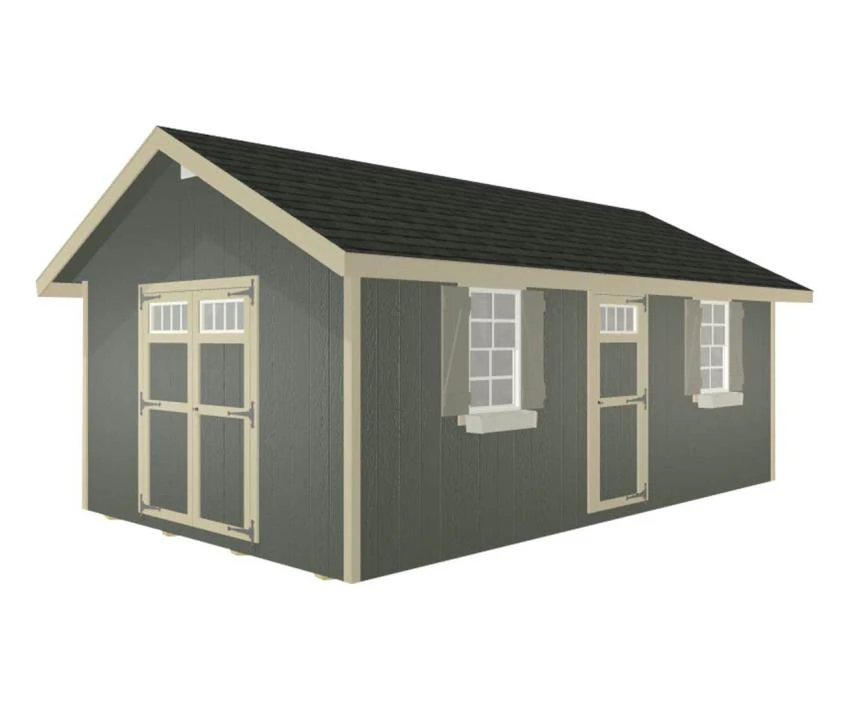

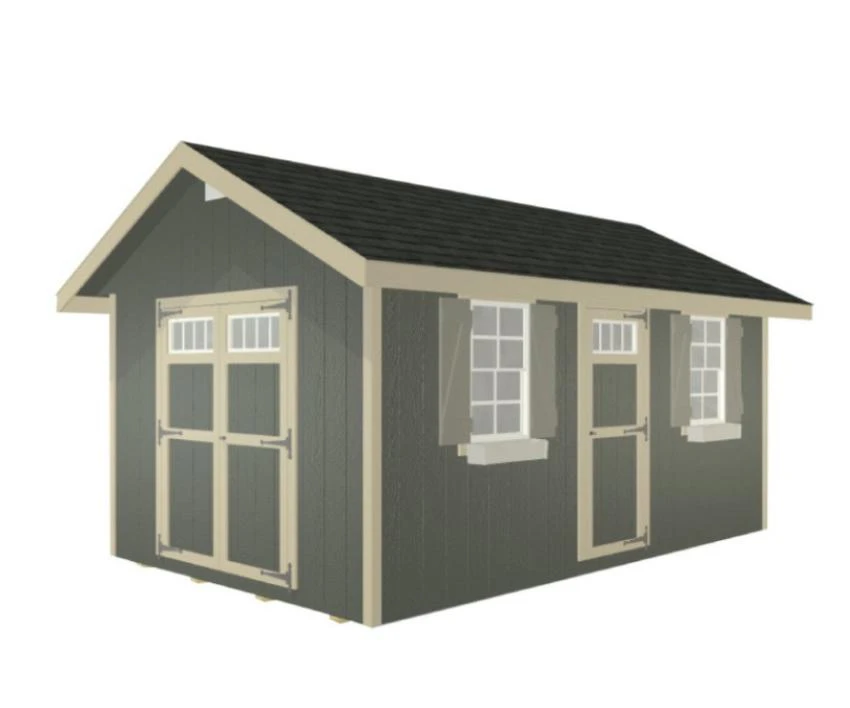

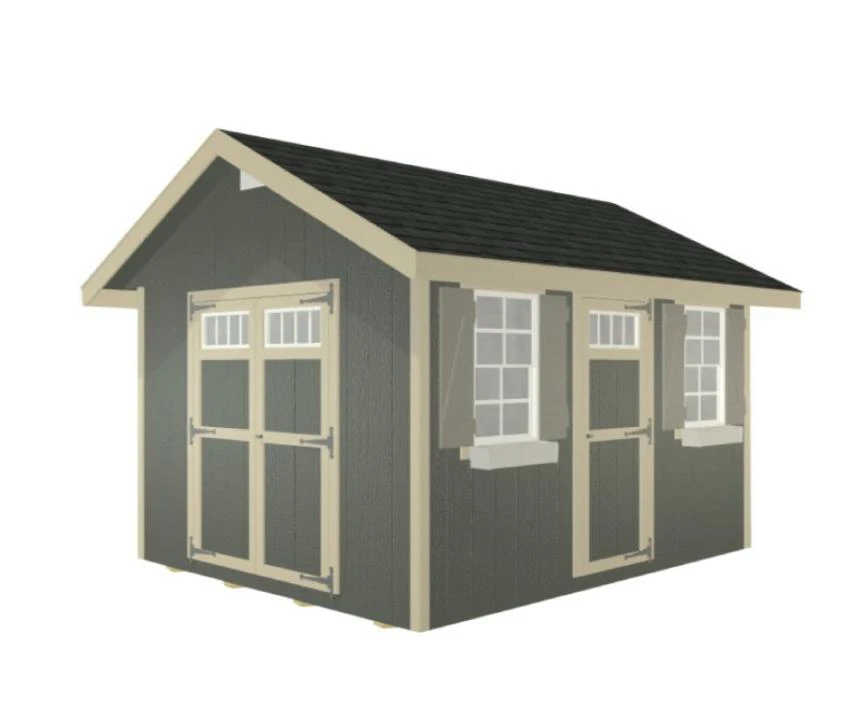

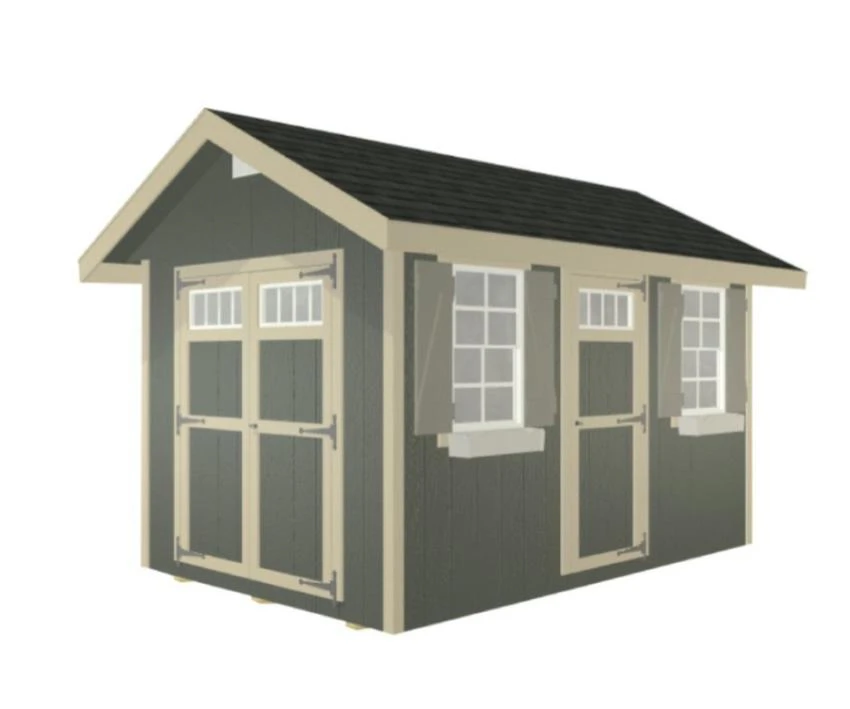

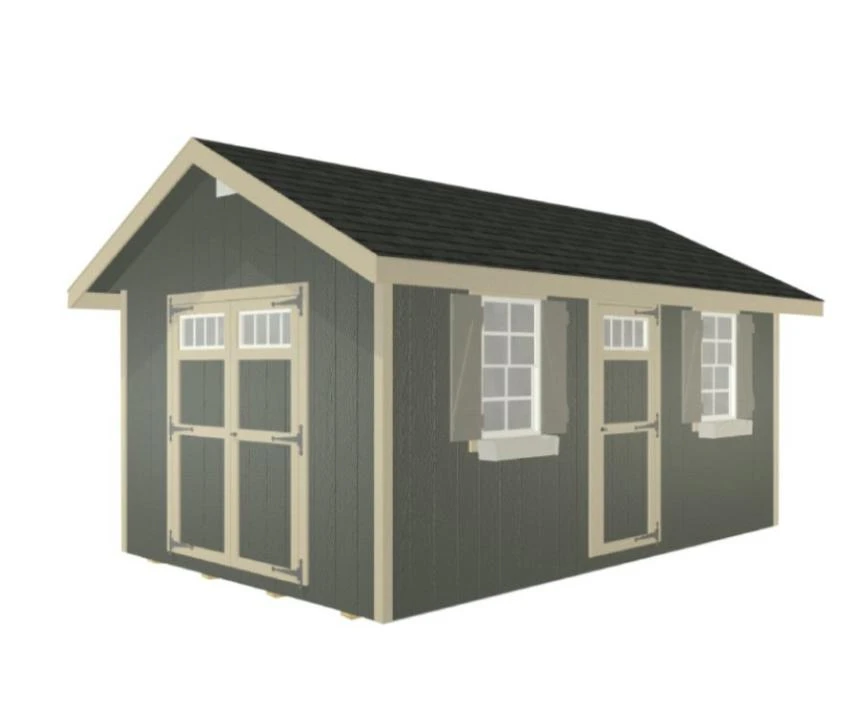

Photos show different option combinations.
Amish Made Riverside Shed Kit
+25

Dimensions & Specifications

Dimensions:
8' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 8' 6"
Outside Height: 9' 9"
Roof Overhang: 12"
Roof Pitch: 6/12

10' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 9' 2"
Outside Height: 10' 3"
Roof Overhang: 12"
Roof Pitch: 6/12

12' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 9' 10"
Outside Height: 10' 9"
Roof Overhang: 12"
Roof Pitch: 6/12

Standard Features:
Primed Smartside Siding
Double Top-Plate & 6" Fascia
4' Panelized Wall Sections
Rafters
Roof Sheathing
Pre-Hung Doors
Fasteners and Hardware
Single Door (30" x 72")
Double Door (60" x 72")
2 - 24" x 36" Windows with Shutters
Lock and Key Door
105 MPH Wind Rating
Smartside Siding 5/50 year prorated limited manufacturer's warranty

- Roof material is OSB (Oriented Strand Board) - Same as is used in building houses.
- The walls are framed with 2x4 SPF material (spruce pine and fir) it is the same material they use to frame houses.
- The siding attached to the wall framing is 7/16” thick LP Smartside - it is treated for termites and fungal decay.

Not Included in Kit:
Shingles
Roof Drippedge
Paint

Optional Features:
Two 24”W x 48” long ramp sections
Diamond Plate Threshold
Transom Windows for Doors
Cupola
Weathervane (Rooster, Eagle, Horse, Horse & Buggy)
Vinyl Flowerboxes
*Flowerboxes are to be fastened to the barn with 2-2 1/2" screws per flowerbox
Decorative Flower Box Holders
Optional floor kit is not available in sizes 10' x 20', 12' x 20', and 12' x 24'

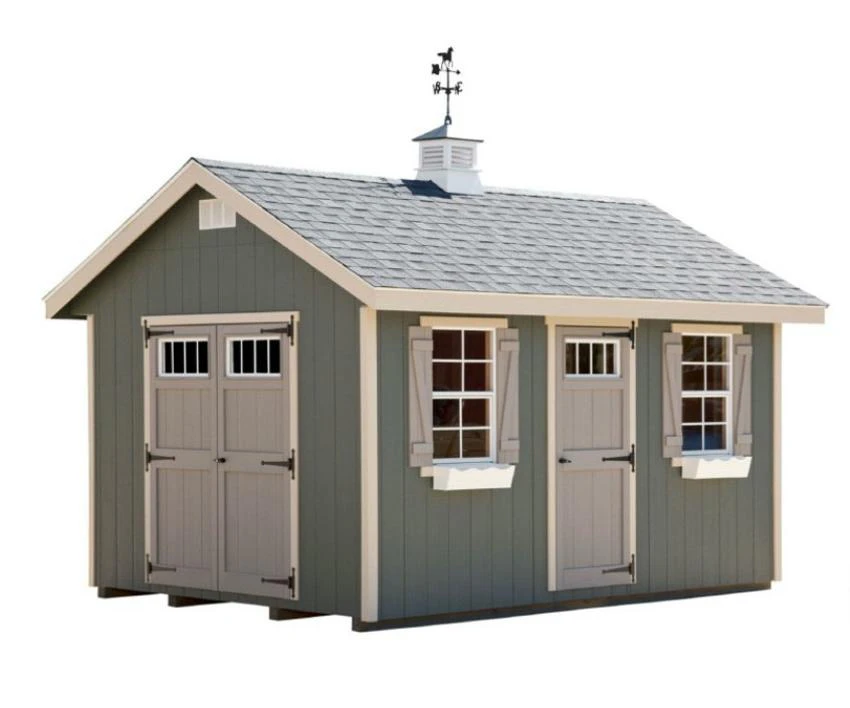

Pictured is an 8x12 Riverside Shed with Transom Windows in Both Doors, 16" Cupola, Weathervane, and 2 Flowerboxes.

*The Amish Made Riverside Storage Shed Kit ships via freight and may require an appointment for delivery.

Delivery Cost & Lead Time

Ground Shipping by Location.
Quality takes time. This product is expected to be delivered in 3 to 4 weeks.

Additional Information

Although all of our shed kits are shipped with easy to follow instructions, some customers have had questions on the exact fastening specifications for our Amish Made Shed Kits. Here are some guidelines for what's included with your shed purchase, and where those nails and screws are used. If you have any questions at all,  please feel free to give us a call at 1-866-272-6773.

2" Nails
  • Fastening Plywood Flooring to Floor Joists: Varies by model, consult your instructions
  • Roof Sheathing: Same Spacing as Plywood Flooring
  • Fastening Corner Trim: 8" Spacing
  • Roof Gussets: 12 Nails per Gusset (24 Nails per Rafter)
  • Smartside Soffit to Top of Sidewalls: 8" Spacing
  • Fastening Rafters to Smartside Soffit: 3" Spacing
  • Facia Trim Along Roof: 2 Nails into Every Rafter
  • Roof Sheathing Down into Facia Trim: 8" Spacing
  • Window and Window Trim: 8" Spacing

2.5" Screws

  • Fastening Wall Panels Together: 12" Spacing
  • Double 2x4" Top/Plate: 8" Spacing
  • Fastening Bottom/Plate of Walls Down into Floor Joists: 2 screws every 16"

1.5" Screws

  • Door Hardware

*Screws may require a #2 Square Drive Bit

Site Preparation

If you're looking to install your shed with a floor kit, it is recommended to have 4-5" of crushed stone (no. 8 or no. 57) beneath the floor kit. Also, make sure that there is a 12" border around the outside of your shed. This extra space keeps the moisture away from your shed, and makes it easier to control the weeds. Simply dig out 4" of soil and level the stone out - you're good to go!

Have a cement slab, or looking to pour one? No problem. Simply make the slab 1/2" smaller than the shed, on both the width and length.

Delivery

This shed ships via common carrier freight. Although a liftgate is unavailable due to the size of this kit, it can be unloaded by hand. The package will be opened up on the truck, and it's recommended to have 2-3 people there to unload all of the pieces. The pieces range in weight, but the heaviest is only 60lbs.

Assembly

Panelized Kits are the way to go! This shed kit comes partially assembled. The walls are in assembled, panelized sections, and the rest of the items are precut and ready for assembly. It couldn't get any easier! Simply provide the shingles, drip edge, and paint. Not sure you're up for the challenge? No problem - any general contractor can get your shed up in no time.

Square Foot Roof Area (For Shingles)

   8x8 Kit   8x10 Kit   8x12 Kit   10x10 Kit   10x12 Kit   10x14 Kit   10x16 Kit   10x20 Kit   12x16 Kit   12x20 Kit   12x24 Kit
 Roof Area  125 150 175 180 209 240 270 330 311 379 448



Frequently Asked Questions on our Amish Sheds
Do I need a construction background?
Basic carpentry skills will make the job go easier, however our kits are designed to fit together easily and accurately and much of the prep work is done before it ever shows up. So it takes minimal skills to assemble the shed kit.

Do I need someone to help me build the shed?
We do recommend that two people work together. It will go more smoothly if you have a friend to help by holding the tape measure and handing you parts and tools, especially once on the roof. However the largest items are the kit are the 4 ft. wall sections, and they can easily be handled by 1 person.

Do I need to use a special paint on the Smartside siding?
The siding is shipped already primed and any exterior latex paint can be used.

Why aren’t shingles included in the kit?
Due to the weight of shingles, it is more cost-effective to have the customer purchase them locally instead of shipping them.

Why isn’t the floor included in the kit?
Not everyone wants or needs a floor for his shed. Some may have a cement slab already in place. Therefore, we offer the floor kit as an option.

Do I need any permits to build my shed?
This will vary by location. Please check with your local zoning department for information on permits.

Overview

Our Riverside Shed will perfectly suit all types of hobbies and styles. Use it to store outdoor items like bikes and gardening supplies or turn into a she shed or man cave. Whatever you choose, know that the Riverside will be there to accent your style beautifully! It comes primed from woodshop, so you can put your splash of color on to match your outdoor décor perfectly.

Easy DIY Shed Kit

Why struggle through assembly? This shed is delivered in panelized form, which means the walls are already assembled in 4' sections. It also includes easy to follow assembly instructions, to make assembly a snap!

Since it is handcrafted by expert Amish woodworkers, it is built with the highest level of quality and attention to detail. Each of the individual wall studs are cut with a specialized notch, and then a 2x3" strongback nailer is installed to create a straighter and stronger wall - it also increases the nailing surface for the siding panels! No detail is overlooked, even the locksets are made in the USA with heavy duty locking mechanisms for maximum durability.

Endless Options

Don't get stuck with standard as your only option. By ordering an Amish shed kit, you're able to customize it specifically to your taste. Create the perfect layout for your storage shed by changing the location of the doors and windows, or even add on a ramp for the double door - creating easy storage access! Add on flower boxes to the windows to showcase your beautiful flowers, and accent them further with delicate flower box holders.

Call Us!

Please give us a call if you have any questions at all - we would love to help! Our number is 941-867-2233. We have knowledgeable and friendly furniture specialists available to answer every one of your questions. We want to help you create the perfect outdoor oasis with one of our Amish sheds - use it for storage, backyard gardening, crafting, or even a zen den. The options are endless for your new masterpiece.

You also can stop by one of our DutchCrafters store locations.

See more products from this woodshop: Amish Made Sheds and Chicken Coops Collection
