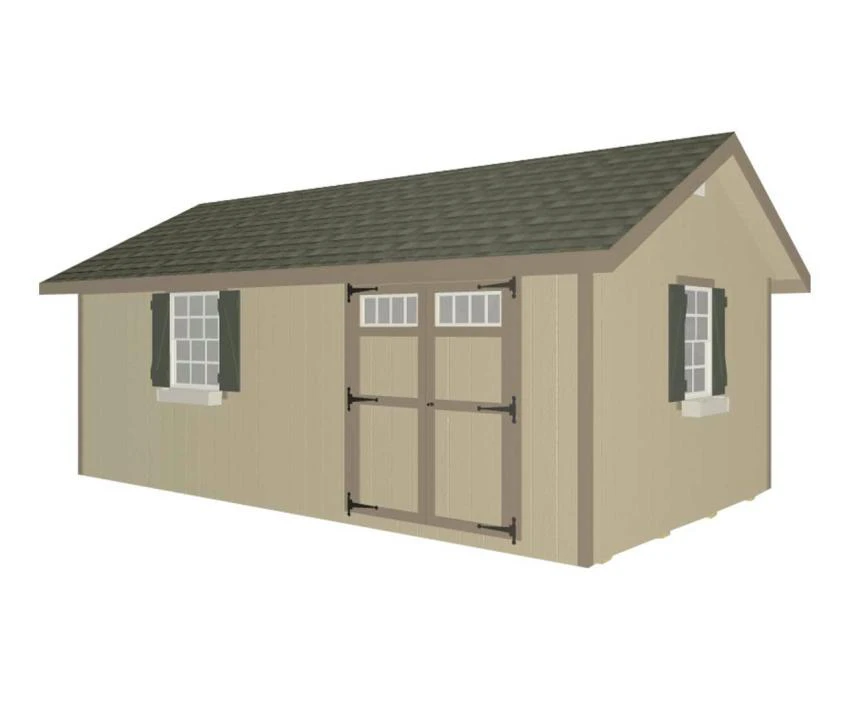

Photos do not reflect options selected.

+20

Dimensions & Specifications

Dimensions:
8' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 8' 6"
Outside Height: 9' 9"
Roof Overhang: 12"

10' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 9' 2"
Outside Height: 10' 3"
Roof Overhang: 12"

12' Wide
Sidewall Height: 6' 6"
Inside Peak Height: 9' 10"
Outside Height: 10' 9"
Roof Overhang: 12"

Standard Features:
Roof:

6 Pitch Roof

Roof Sheathing
Construction:

2x4" Double Top-Plate

6" Fascia Trim

Air Vents
Doors:

Pre-Hung Doors

60" Double Doors with USA Made Lockset

12" Decorative Hinges

Lock and Key
Windows:

24x36" Window with "Z" Shutters

30x36" Window with "Z" Shutters
Other Features:

Strongback Nailer

Primed Smartside™ Siding

Treated Skids

2x4" Wall Framing

2x4" Double Top Plate

6" Facia Trim

Rafters

Primed Smartside Siding

Fasteners and Hardware

4' Panelized Wall Sections

105 MPH Wind Rating

Ground Snow Load: 25 PSF

Roof Dead Load: 10 PSF

Floor Live Load: 40 PSF

Floor Dead Load: 10 PSF

- Roof material is OSB (Oriented Strand Board) - Same as is used in building houses.
- The walls are framed with 2x4 SPF material (spruce pine and fir) it is the same material they use to frame houses.
- The siding attached to the wall framing is 7/16” thick LP Smartside Siding - it is treated for termites and fungal decay. Smartside Siding is a high quality engineered wood.

Not Included in Kit:
Shingles
Roof Dripedge
Paint
Electrical Package

Optional Features:
Transom Windows in 60" Double Doors (60"W x 42"L)
Transom Window in Single Door
Two 24”W x 48” long ramp sections

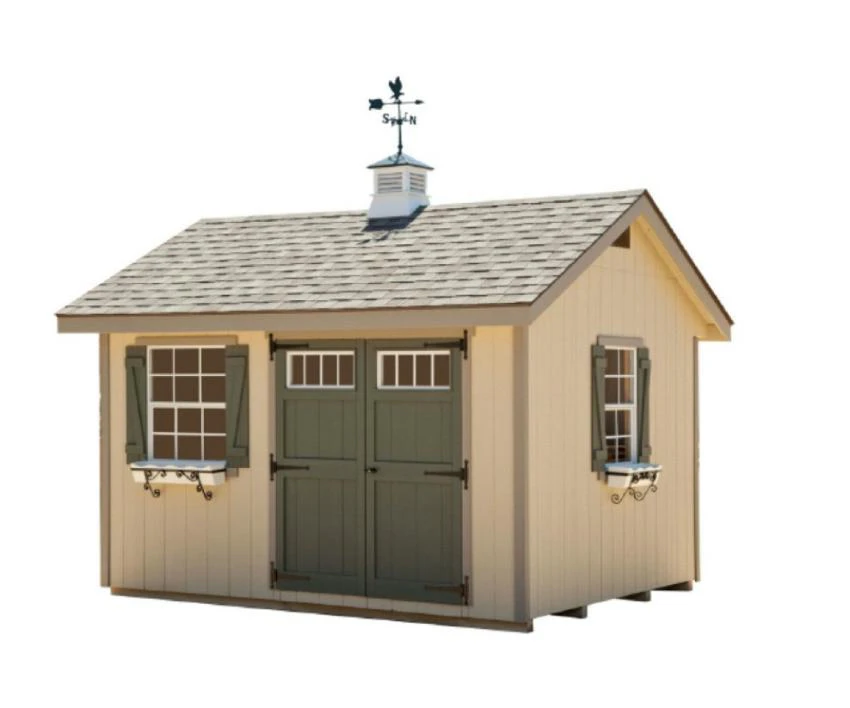

16" Cupola Painted White with Black Roof
Weathervane (Rooster, Eagle, Horse, Horse & Buggy)
Vinyl Flowerbox (White)
Decorative Flowerbox Holder
Diamond Plate Threshold
Vinyl Flowerboxes
*Flowerboxes are to be fastened to the barn with 2-2 1/2" screws per flowerbox
Decorative Flower Box Holders
Optional floor kit is not available in sizes 10' x 20', 12' x 20', and 12' x 24'

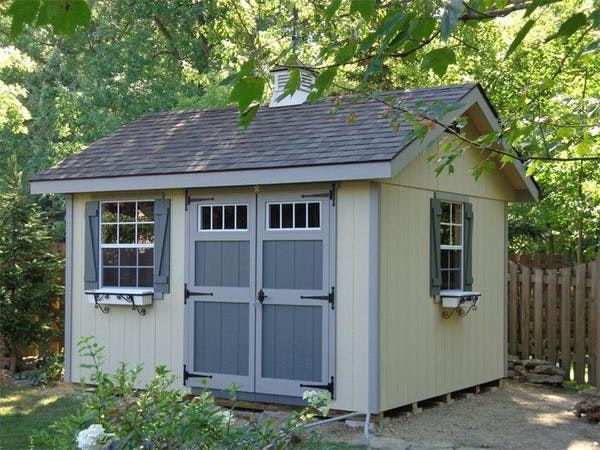

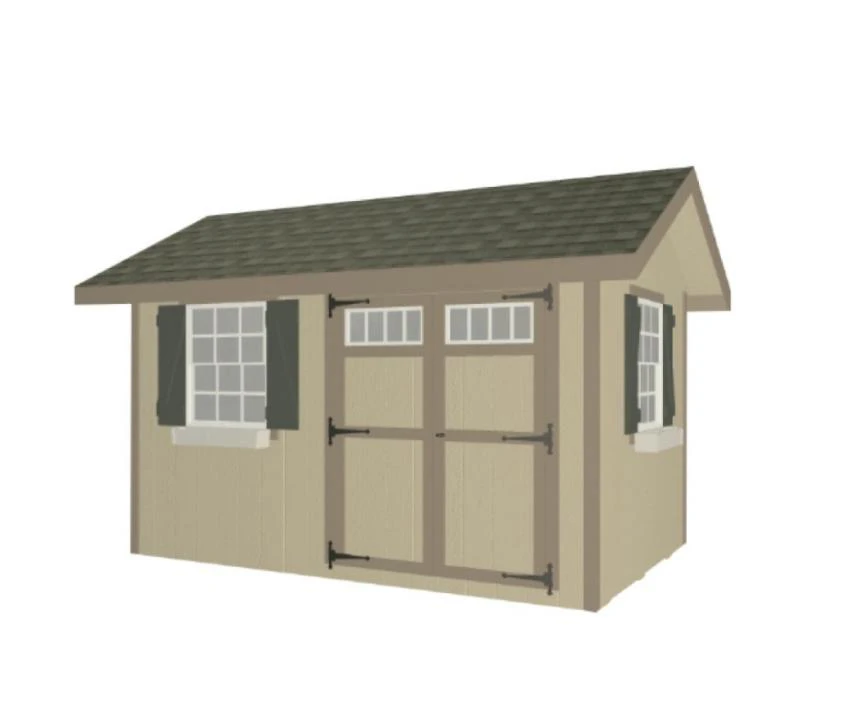

Pictured is an 8x12 Home Office Shed with Transom Windows in Both Doors, 16" Cupola, Weathervane, and 2 Flowerboxes.

*The Amish Made DIY Home Office Shed Kit ships via freight and may require an appointment for delivery.

Electrical Packages are not available

Delivery Cost & Lead Time

Additional Information

Shed Fastening Specifications

Although all of our shed kits are shipped with easy to follow instructions, some customers have had questions on the exact fastening specifications for our Amish Made Shed Kits. Here are some guidelines for what's included with your shed purchase, and where those nails and screws are used. If you have any questions at all, please feel free to give us a call at 1-866-272-6773.

2" Nails

Fastening Plywood Flooring to Floor Joists: Varies by model, consult your instructions
Roof Sheathing: Same Spacing as Plywood Flooring
Fastening Corner Trim: 8" Spacing
Roof Gussets: 12 Nails per Gusset (24 Nails per Rafter)
Smartside Soffit to Top of Sidewalls: 8" Spacing
Fastening Rafters to Smartside Soffit: 3" Spacing
Facia Trim Along Roof: 2 Nails into Every Rafter
Roof Sheathing Down into Facia Trim: 8" Spacing
Window and Window Trim: 8" Spacing

2.5" Screws

Fastening Wall Panels Together: 12" Spacing
Double 2x4" Top/Plate: 8" Spacing
Fastening Bottom/Plate of Walls Down into Floor Joists: 2 screws every 16"

1.5" Screws

Door Hardware

*Screws may require a #2 Square Drive Bit

Site Prep, Assembly, and Delivery

Site Preparation

If you're looking to install your shed with a floor kit, it is recommended to have 4-5" of crushed stone (no. 8 or no. 57) beneath the floor kit. Also, make sure that there is a 12" border around the outside of your shed. This extra space keeps the moisture away from your shed, and makes it easier to control the weeds. Simply dig out 4" of soil and level the stone out - you're good to go!

Have a cement slab, or looking to pour one? No problem. Simply make the slab 1/2" smaller than the shed, on both the width and length.

Delivery

This shed ships via common carrier freight. Although a liftgate is unavailable due to the size of this kit, it can be unloaded by hand. The package will be opened up on the truck, and it's recommended to have 2-3 people there to unload all of the pieces. The pieces range in weight, but the heaviest is only 60lbs.

Assembly

Panelized Kits are the way to go! This shed kit comes partially assembled. The walls are in assembled, panelized sections, and the rest of the items are precut and ready for assembly. It couldn't get any easier! Simply provide the shingles, drip edge, and paint. Not sure you're up for the challenge? No problem - any general contractor can get your shed up in no time.

Square Foot Roof Area (For Shingles)

	8x8 Kit	8x10 Kit	8x12 Kit	10x10 Kit	10x12 Kit	10x14 Kit	10x16 Kit	10x20 Kit	12x16 Kit	12x20 Kit	12x24 Kit
Roof Area	125	150	175	180	209	240	270	330	311	379	448

Shed FAQs

Frequently Asked Questions on our Amish Sheds

Do I need a construction background?

Basic carpentry skills will make the job go easier, however our kits are designed to fit together easily and accurately and much of the prep work is done before it ever shows up. So it takes minimal skills to assemble the shed kit.

Do I need someone to help me build the shed?

We do recommend that two people work together. It will go more smoothly if you have a friend to help by holding the tape measure and handing you parts and tools, especially once on the roof. However the largest items are the kit are the 4 ft. wall sections, and they can easily be handled by 1 person.

Do I need to use a special paint on the Smartside siding?

The siding is shipped already primed and any exterior latex paint can be used.

Why aren’t shingles included in the kit?

Due to the weight of shingles, it is more cost-effective to have the customer purchase them locally instead of shipping them.

Why isn’t the floor included in the kit?

Not everyone wants or needs a floor for his shed. Some may have a cement slab already in place. Therefore, we offer the floor kit as an option.

Do I need any permits to build my shed?

This will vary by location. Please check with your local zoning department for information on permits.

Overview

If you're looking for a private place to separate your home life from your work life while you're working from home, then you've come to the right place. Our Amish DIY Home Office Shed Kit provides the perfect spot to set up your home office in your backyard while you're working from home. Working from home sets you up for distractions and can be detrimental to your mental health when work and home life are not separated. By purchasing this Home Office Shed Kit, you can set up your own private office space right in your backyard!

Have questions? We are here to help! Our knowledgeable and friendly Amish furniture specialists love to help design your outdoor space, and can help with any questions you have about this beautiful Home Office Shed. Our number is 1-941-867-2233.
